REGULATOR VALVES

Regulator Valves, aka Reg Valves or Proportional Control Valves, are studied and developed to adjust the flow where the treatments applications vary in proportion with engine rpm

ARAG ELECTRIC REG VALVE PROPORTIONAL CONTROL VALVE FLANGE GENUINE MADE IN ITALY

Electric proportional control valve with flange connection.
Specific for use with BRAVO and DELTA computers: new larger-diameter drive system, with wear-proof coating for a longer life.
Fiberglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Internal resettable fuse (disconnecting power for 20 seconds)
Max. Pressure : 20b
Max. Flow Rate : 150l’
Powe Supply voltage : 12Vdc4

ARAG REG VALVE PROPORTIONAL CONTROL ELECTRIC VALVE T5FORK FITTING

Electric proportional control valve with T-FORK connection.
Specific for use with BRAVO and DELTA computers: new larger-diameter drive system, with wear-proof coating for a longer life.
Fiberglass-reinforced Nylon body
Internal parts in Delrin® and AISI 303 stainless steel
Gaskets made of Viton®
Internal resettable fuse (disconnecting power for 20 seconds)
Max. Pressure : 20b
Max. Flow Rate : 150l’
Powe Supply voltage : 12Vdc

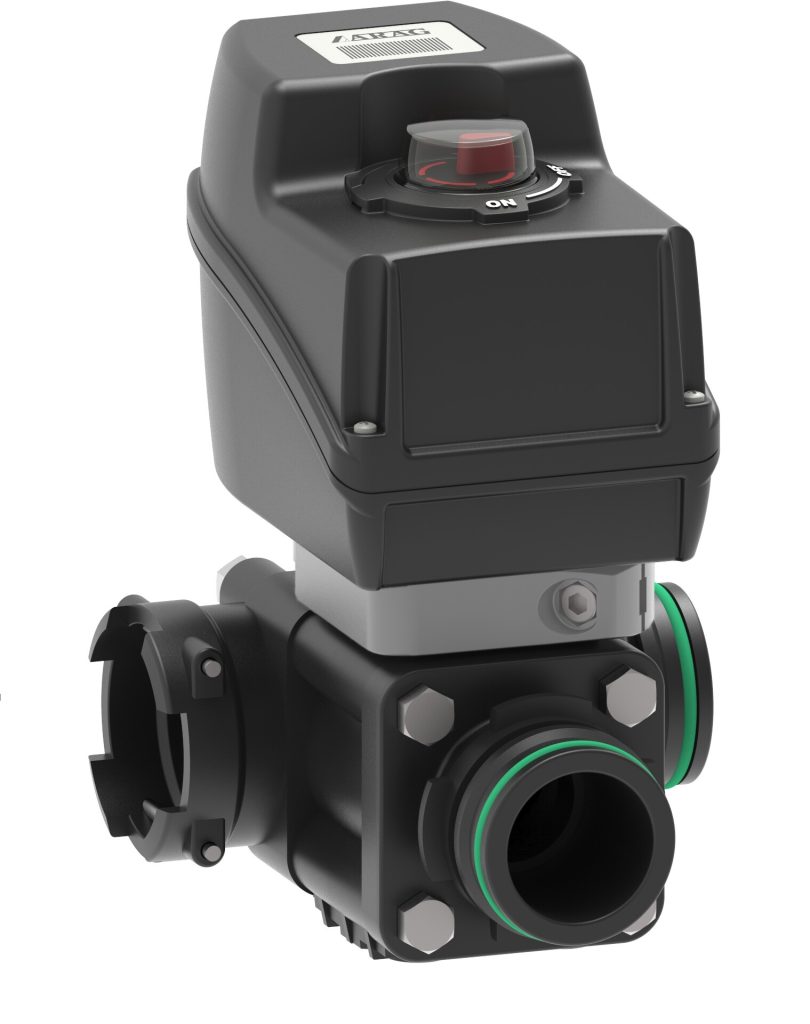

ARAG ELECTRIC PROPORTIONAL CONTROL REG VALVE SCA

Electric proportional control valve with shaped ball. 2-way with fork couplings and modular manifold.
The shaped ball allows a more accurate and linear regulation also at a low flowrate.
Ball and rotation pin in AISI 316 STAINLESS steel.
Ball sealing seats in TEFLON®.
Internal O-rings in Viton®.
Flange fixing bolts in STAINLESS steel, protected by the valve body.
Available with T6-fork coupling.
Max. Pressure : 12b
Max. Flow Rate : 320l’
